Defining the Terms: Divert Reliability vs. Mis-Sort Rate
These two metrics are related but not identical, and conflating them leads to measuring the wrong thing when diagnosing sort accuracy problems.
Divert reliability rate is the percentage of activated divert events that mechanically succeed — meaning the sorter's divert mechanism (pivot arm, sliding shoe, cross-belt, or tilt tray) successfully moved the parcel to the assigned chute when commanded to do so. A divert reliability failure is a mechanical event: the pivot arm fired but the parcel didn't fully transfer to the chute, the sliding shoe moved too slowly for the parcel velocity, the cross-belt timing was off.
Mis-sort rate is a broader measure: the percentage of sorted parcels that end up in the wrong chute for any reason. That includes divert mechanism failures, but also no-read events (parcel went to the no-read spur and was manually inducted to a wrong chute), WES assignment errors, and manual sort errors at secondary sort stations. A facility can have a high divert reliability rate (99.7%) and still have a high mis-sort rate (1.2%) if the primary driver is no-read mis-handling, not mechanical divert failure.
The distinction matters because the fixes are different. Divert reliability below 99.5% points toward mechanical inspection, timing calibration, or sorter OEM service. Elevated mis-sort rate despite good divert reliability points toward the no-read handling workflow, WES assignment configuration, or manual secondary sort practices.
Mechanical Failure Modes by Sorter Type
Each sortation technology type has characteristic divert failure modes. Understanding which failure mode applies to your equipment informs both the inspection protocol and the remediation action.
Sliding-shoe sorters. The shoe (a plastic or metal divert element running in the slat surface) can develop wear on the guide channels, causing inconsistent shoe extension speed. The failure mode is partial divert: the parcel partially transfers to the chute but doesn't fully clear the primary sort belt, typically resulting in the parcel being carried past the chute opening and deposited in the wrong chute or falling between chutes. Inspection interval for shoe wear is typically 2–3 million cycles on high-volume FCs — shorter during peak season surge when cycle counts spike.

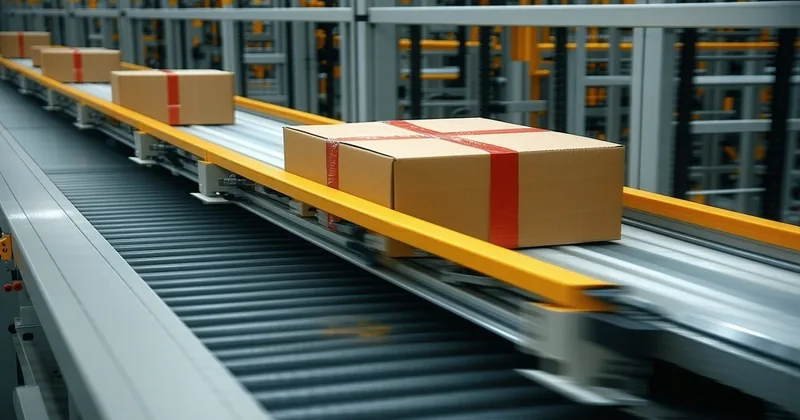

Cross-belt sorters. The individual carrier belt that diverts the parcel needs to be at a specific speed relative to the main conveyor belt velocity to transfer cleanly into the chute mouth. Cross-belt failures are usually timing and synchronization issues — either the carrier belt fires too early or too late relative to the chute approach, or the carrier belt speed is mismatched to the main belt speed for the specific package weight profile. Lighter packages (poly mailers under 200g) are particularly sensitive to timing variance.
Pivot-arm sorters. The pivot arm's sweep angle and speed need to match the package footprint. An arm set for standard carton dimensions will frequently miss poly mailers (which are narrower) and may also mis-divert tall narrow cartons if the arm pivot timing doesn't account for the center-of-gravity difference. Pivot-arm sorters are also sensitive to package placement on the conveyor — a package that's not centered within the arm's sweep zone has a higher failure probability.
Tilt-tray sorters. Tilt timing and tray return speed are the primary variables. A tray that doesn't return to level position before the next parcel loads will result in misloads that typically cause a cascade of divert failures on subsequent trays. Tray surface condition (degraded friction coating on high-volume trays) also affects divert transfer reliability for lightweight items.
No-Read Contribution to Mis-Sort Events
In facilities sorting for multiple carriers — each with different label formats, barcode symbologies, and label placement conventions — no-read events are a significant mis-sort driver that often gets less attention than mechanical divert failures because it's less visible on the sort floor.
A parcel that reaches the sort loop without a successful scan has no WES sort assignment. In a properly configured WES, it's diverted to the no-read spur for manual identification and re-induction. In practice, the no-read spur handling workflow is where a disproportionate share of mis-sorts originate: manual scanning at the no-read station introduces human error; time pressure during peak causes staff to make rapid assignment decisions that bypass verification; poorly maintained scan tunnel hardware at the no-read station produces inconsistent reads.
Typical no-read rates range from 0.5% (well-maintained scan tunnels, consistent label quality, single-carrier format) to 3%+ (multi-carrier, label quality variation, aging scan tunnel hardware). On a sorter processing 15,000 PPH with a 2% no-read rate, that's 300 parcels per hour going through a manual handling workflow. If 4–5% of those parcels are mis-sorted at the manual station, the contribution to overall facility mis-sort rate is meaningful: roughly 12–15 parcels per hour from the no-read spur alone.
The fix for no-read contribution to mis-sort isn't only better scan hardware — it's a more rigorous no-read handling workflow: dedicated staffing at the no-read station during high-volume shifts, barcode verification before re-induction (not just a label scan), and exception logging that tracks which label types are generating no-read events so the root cause can be addressed at the label quality level.
Real-Time Detection vs. Post-Shift Reconciliation
The standard practice in most FCs for catching mis-sort events is end-of-shift reconciliation: comparing WMS expected parcel counts per chute against actual physical counts at chute clearance. The gap between expected and actual identifies probable mis-sorts. This works for gross accuracy auditing but is a post-facto process — the mis-sorted parcels are already in the wrong trailer, or sitting in the wrong chute, at the time the discrepancy is detected.
Real-time mis-sort detection requires a different approach: comparing scan events at each chute against the WES assignment for that chute in real time. A parcel that triggers a scan event at Chute 34 when its WES assignment was Chute 19 is a detectable mis-sort signal — if the monitoring layer is watching for that discrepancy as sort events are generated, not four hours later in a reconciliation run.
WES platforms maintain assignment tables that pair each parcel's scan ID with an assigned chute. When a scan is detected at a chute that doesn't match the assignment table, the WES can log that as a sort exception. Most WES deployments log this data — the gap is that it's not surfaced as a real-time alert to floor supervisors who could investigate and correct before the parcel clears the chute.
A real-time WES analytics layer that monitors sort exception events and triggers an alert when a chute generates more than N mis-sort flags within a 5-minute window can surface mechanical divert problems or operational workflow issues while there's still an opportunity to intervene. The threshold needs to be tuned to the facility's normal exception rate — too sensitive and alert fatigue defeats the purpose; too coarse and the problem has already propagated before the alert fires.
Building a Divert Quality Monitoring Program
A divert quality monitoring program isn't a software purchase — it's an operational process with a data backbone. The core components:
- Baseline measurement. Calculate current divert reliability rate and mis-sort rate using WES event data. Separate mechanical divert failures from no-read mis-sort contributions. This gives you two target numbers to track independently.
- Per-chute exception tracking. Identify which chutes or sort zones are generating disproportionate exception events. A 60-chute sorter with a 0.6% overall mis-sort rate might have 3 chutes generating 40% of the exceptions — this is a signal of a localized mechanical or flow issue, not a systemic problem.
- Shift-level trending. Track divert reliability rate per shift over time. A sorter that maintains 99.7% reliability for three weeks and then drops to 99.1% in a specific shift window is signaling a developing mechanical issue — worn shoe guides, a cross-belt timing drift, a tilt-tray surface condition problem — that will get worse before the next scheduled maintenance cycle if not addressed.
- Feedback loop to induction. Mis-sort events that originate from no-read handling should feed back to the induction label quality process. If label type X is generating 4x the no-read rate of label type Y, that's a scanner positioning problem or a label quality specification problem — and it should be addressed at the point where labels are applied, not managed entirely at the sort loop.
The operational goal is moving from discovering divert reliability problems in end-of-shift reconciliation to detecting them during the shift, while parcels are still accessible on the sort floor and corrective action is still possible. The data infrastructure to do that exists in the WES telemetry that your sort system already generates — the gap is connecting it to a monitoring layer designed for operational decision-making rather than mechanical engineering oversight.
