What Dimensioning Systems Actually Capture at Induction

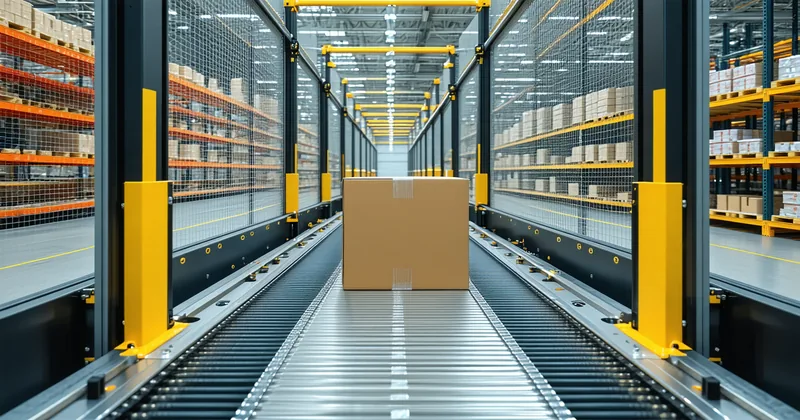

Automatic dimensioning and weighing (DWS) systems at induction — products from vendors like Mettler-Toledo, Cubiscan, and Datalogic — capture three data points for each inducted parcel: length, width, height, and gross weight. The scan happens in a fraction of a second as the parcel passes the dimensioning frame, typically integrated with the scan tunnel that reads the shipping label.
The data these systems generate is dense and operationally rich. A parcel inducted at 09:14:22 might produce: dimensions 18.2 × 11.6 × 8.3 inches, weight 4.7 lbs, barcode scan success, assigned to Chute 27. Four seconds later, the next parcel: dimensions 9.1 × 6.4 × 0.7 inches (a poly mailer), weight 0.3 lbs, barcode scan success, assigned to Chute 43. That stream of dimensional and weight records, generated at induction rate — potentially 3,000–5,000 measurements per hour on a busy sort lane — is the raw material for a set of capabilities that most FCs currently use for billing and carrier rate calculation only.
The opportunities in that data stream — for chute assignment, for recirc reduction, for mis-label detection — are the subject of this article.
Using Cube Data for Chute Assignment Optimization
Standard WES chute assignment is based on carrier zone and shipment manifest data: this parcel goes to Chute 27 because it's a Zone 4 residential delivery for Carrier B. The assignment logic doesn't account for parcel dimensions — specifically for the volume each parcel will occupy in the chute.
This matters because chute fill rate is calculated in parcels-per-chute, but chute capacity is physically measured in cubic feet. A chute assignment table calibrated for average parcel size works well when the mix is consistent. When it diverges — a wave with an unusually high proportion of large cartons, or a promotional period with a high volume of oversized items — the nominal chute assignments will produce fill-rate spikes on certain zones because the physical chute capacity exhausts faster than the parcel-count-based fill rate model predicts.
Cube data at induction creates the ability to calculate volumetric fill rate rather than unit-count fill rate. If the current incoming parcel stream for Chute 27's zone is running at 40% large cartons (vs. the 15% baseline), a dimensional-aware chute assignment system can begin routing overflow large cartons to pre-configured overflow chutes before the primary chute fills physically. The WES already has the overflow logic; what it needs is the real-time dimensional signal to trigger it.
This is a data integration problem, not a hardware problem. The DWS system at induction is already capturing dimensional data. The WES is already making chute assignment decisions. Connecting dimensional data to the chute assignment logic — so that large-carton volume can trigger overflow chute activation automatically — requires an integration layer between the DWS event stream and the WES assignment engine.
Weight Variance as a Mis-Label Detection Signal
Every parcel in a carrier's manifest has a declared weight — the weight that the shipper reported when the shipping label was generated. The DWS system at induction captures the actual weight. When those two numbers diverge significantly, something is worth investigating.
The scenarios that produce weight variance at induction:
- Mis-labeled parcel. The shipping label was applied to the wrong package — the label is for a 2.3-lb item but the package weighed in at 8.7 lbs. This is a genuine mis-sort risk: if the parcel sorts by label, it will end up in the wrong chute. If the weight mismatch is caught at induction, the parcel can be flagged for secondary inspection before entering the sort loop.
- Damaged or modified parcel. A parcel that arrived at the FC with contents shifted, damaged, or missing may weigh differently from the manifest. This is primarily a returns and damage handling signal, not a mis-sort signal — but it's useful for flagging parcels that should be inspected before sort rather than after chute clearance.
- DWS calibration drift. If the DWS system is generating consistent weight variance across many parcels in a specific weight range, the scale may need recalibration. This is a maintenance signal rather than a parcel-level exception, and it's detectable by monitoring the distribution of manifest-vs-actual weight variance across a shift rather than per-parcel.
Weight variance as a mis-label signal requires a threshold-based alert rather than a hard exception flag — you don't want to hold every parcel with any weight discrepancy, because small variance is normal (moisture absorption, packaging variation). Effective thresholds vary by parcel weight class: a 0.5-lb variance on a 2-lb parcel is significant; a 0.5-lb variance on a 40-lb carton is normal tolerance. Configuring weight variance alerts per weight-class bucket rather than using a single absolute threshold reduces false positive rates significantly.
Integrating Dimensioning Data with WES Sort Assignment
DWS systems expose their measurement data through several integration interfaces depending on the vendor and installation. Cubiscan DWS systems typically output to a serial data stream or TCP socket; newer systems support REST API output and MQTT publish. Mettler-Toledo systems use similar interface options plus proprietary OPC UA nodes in installations integrated with industrial control systems.
The integration architecture for connecting dimensional data to WES chute assignment logic follows the same pattern as the OPC UA / MQTT integration approach described for WES-to-WMS latency reduction: a consuming analytics layer subscribes to the DWS data stream, enriches WES sort assignment decisions with dimensional data, and optionally writes back to the WES assignment engine (or to a middleware layer that the WES reads) to modify chute assignments for specific parcel profiles.
The write-back path is where integration complexity increases. Reading from DWS is straightforward — it's a data source like the WES itself. Writing back to WES sort assignment logic requires understanding how the specific WES handles real-time assignment modification. Some WES platforms (including some Honeywell Momentum deployments) support dynamic chute assignment modification via their OPC UA write nodes; others require assignment changes to happen through the WES configuration interface rather than via real-time API. The integration architecture needs to be designed around what the specific WES deployment supports.
Downstream Sort Accuracy Improvements: What's Realistic
The measurable impact of integrating dimensioning data into sortation operations varies significantly based on facility profile — specifically, on how variable the parcel dimension mix is and how close the sort floor is already running to its throughput and accuracy ceilings.
For a facility with high dimensional variability — a multi-category fulfillment center sorting lightweight poly mailers alongside large household goods cartons in the same wave — dimensional-aware chute assignment can reduce recirc events from large-carton chute overflow by 15–25% compared to unit-count-based assignment. For a facility with a tight, consistent package profile (e.g., a single-merchant FC shipping primarily standardized carton sizes), the marginal benefit is smaller because the baseline chute fill dynamics are already predictable.
Weight-based mis-label detection is similarly facility-dependent. For operations with high label quality consistency and low manual relabeling volume, the false-positive rate needs to be managed carefully to avoid creating more exception handling work than the detection prevents. For high-volume operations with multiple packing stations and variable label generation quality, weight variance monitoring can catch 10–20 mis-labeled parcels per shift before they reach the sort loop — a meaningful reduction in end-of-sort reconciliation exceptions.
We're not saying dimensional data integration solves every sort accuracy problem — it addresses a specific category of problems that manifest as chute fill dynamics and label accuracy at the point of induction. For most mid-size FCs, the highest-ROI use of DWS data beyond billing is the weight-based mis-label flag and volumetric fill rate calculation. The more sophisticated chute assignment optimization becomes valuable once the baseline chute management processes are already well-tuned — it's a layer on top of operational fundamentals, not a replacement for them.
